SKU

HBZ534

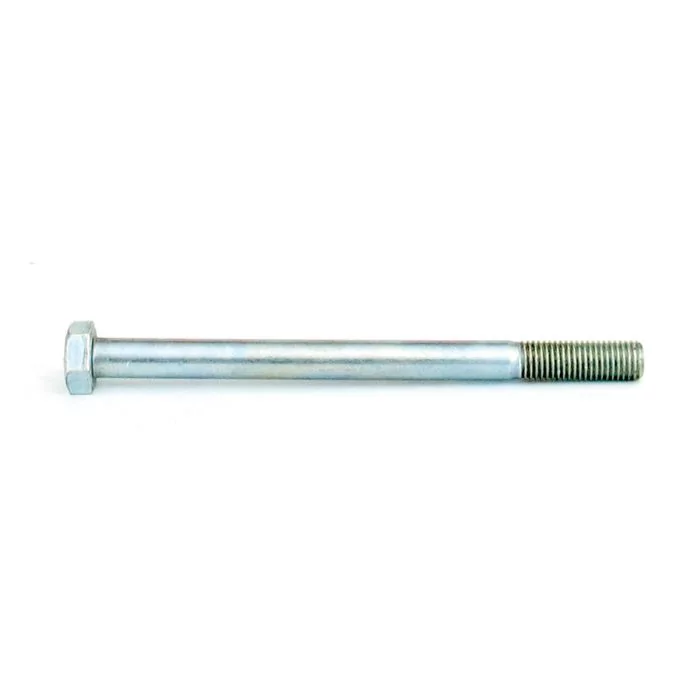

Bolt - Subframe and Engine Mounting Bracket

Name: Bolt - Subframe and Engine Mounting Bracket
SKU: HBZ534
Price: 3.212001 AUD
Availability: InStock

Be the first to review this product

Special Price AUD $3.21 AUD $2.92 Regular Price AUD $3.44

In stock

SKU

HBZ534

Bolt 5/16"UNF x 4 3/8" for Mini hydrolastic front subframe tower mounting, or radiator lower mounting to alloy block Mini pre 1976

Frequently Bought Together

Bolt - Subframe and Engine Mounting Bracket
Special Price AUD $3.21 AUD $2.92 Regular Price AUD $3.44
Bolt - Radiator Lower Mounting
Special Price AUD $2.98 AUD $2.71 Regular Price AUD $3.23
Clutch Arm Push Rod - All Models
Special Price AUD $9.77 AUD $8.88 Regular Price AUD $11.18
Radiator Rubber Surround to Body - Rubber Seal - pre 1975
Special Price AUD $18.29 AUD $16.63 Regular Price AUD $21.92
Gasket - Sliding Window Catch - Mini Mk1-2
Special Price AUD $8.15 AUD $7.41 Regular Price AUD $9.01

Details

This long bolt (5/16"UNF x 4 3/8" long) has 2 applications on the classic Mini.

- lower radiator bracket (12A361) to the alloy mounting block (12G1318) on the Mini gearbox casing pre 1974 with 2 piece cowling

- hydrolastic front subframe tower mounting bolt - 4 required per subframe. The Mini dry suspension subframe used a different bolt. See 21A90

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Part No.

	Genuine built up and ready to fit (pre '96)		HMP241001
	Genuine built up and ready to fit ('97 on)		HMP241003
1	Genuine dry suspension models ('59-'76)		21A2570
1	Genuine dry suspension models 998cc ('76-'91)		KGB10022
1	Genuine SPi/ 1275cc ('91-'96)		HMP241004
1	Genuine MPi 1.3i ('96-'01)		HMP241005
1	Genuine Automatic hydrolastic (early)	NLA	21A1846
1	Genuine Automatic - pre 1997		KGB10024
2	Front mounting bolt	each	GFK5185
3	Washer - front mounting bolt	each	GFK1114
4	Spring Washer - front mounting bolt	each	GFK1125
5	Nut - front mounting nut - 5/16"UNF, nyloc	each	GFK3322
6	Packing washer - front mounting bolt	each	2A4292
7	Bolt - subframe mounting - dry suspension	to '76	21A90
8	Locktab - subframe mounting bolt		21A1470
9	Grommet - locktab		RFR220
10	Bolt - subframe mounting - hydrolastic		HBZ534
11	Spacer - subframe to body	to '76	21A2341
12	Rubber front mount (tear drop),	each	21A2624
12	Poly front mount (tear drop),	each	SPDSP678FR
13	Front tower mounting bolt,	each	21A2596
14	Washer - tower mounting bolt	each	53K3755
15	Tower bolt round bush,	each	KGE100050
	Tower to body oval pad,	each	KGE100060
15	Tower bolt round bush - plastic,	each	21A2597P
15	Poly top washer & bush	kit	SPDSP668A
15	Nylon round top washer & bush	kit	MSLMS0529
15	10 piece alloy bush	kit	SPDSP601
16	Bolt - subframe mounting to body	each	GHF201
17	Rubber rear mount,	each	21A2599
17	Poly rear mount,	each	SPDSP679FR
17	Solid rear mounts,	pair	MSLMS0530
18	Towing eye - late spec (replaces bolt)	each	KPU100160
19	Nut - towing eye 3/8" UNF	each	GFK3323
20	Towing eye (replaces bolt),	each	21A1241

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	3 Core 1275cc (16 gills/inch)	standard	ARP1105
1	4 Core uprated with original top header (25% more efficient)		C-ARA4444
	2 Core Performance High Flow		C-ARA4442
1	2 Core Performance High Flow - with screw in sender		C-ARA4443
1	1.3 Injection SPi - standard	- '92-'96	GRD172
1	Alloy 2 Core High Flow - side fitting type		C-ARA5000
1	Alloy 2 Core High Flow Super Cool	to 90	C-ARA4441
	Alloy 2 Core High Flow Super Cool	90on	C-ARA4441A
1	1.3 Injection MPi - front mounted	- '97-'01	GRD974
2	Radiator Cowl - 1 Piece	- '74-'96	PGK10034
2	Radiator Cowl Cooper S - 2 Piece	- MK1 to 3	MCR51.22.02.05
2	Radiator Cowl Mini -2 piece	- MK1 to 3	MCR11.22.02.05
3	Bolt - cowl to radiator	- to '74	ARA1117
3	Bolt - cowl to radiator	- '74 on	SH604031
4	Rubber Seal - radiator cowl		14A7286
5	Cap 7lb - long neck type	- early 850cc	GRC101
5	Cap 7lb - short neck type - 850cc/ 998cc	- '65-'69	GRC102
5	Cap 13lb - short neck type	- '70-'80	GRC1111
5	Cap 15lb - no sender	- '80-'92	GRC1110
5	Cap 15lb - includes rubber seal	- '92-'96	GRC207
5	Cap Chrome 15lb - includes rubber seal	- '92-'96	SPD0006
7	Lower cowl/radiator bracket	- '74 on	12A2153
9	Bolt - cowl to lower bracket		12G4270
8	Mounting bolt spacer tube for 12G1318		ARP1073
12	Lower bracket adaptor plate		12G1318
12	Gearbox to lower radiator bracket		12A361
13	Mounting bolt for 12A361		HBZ534
	Bush - lower mounting	- '74on	CAM4618
	Bush - radiator bottom mounting	MPi	EAP8708
	Bush - radiator top mounting	MPi	EJP1483
15	Bracket - 1275cc GT Clubman		CAM4621
15	Bracket - 1275cc & Cooper S		CAM4622
16	Rubber mounting grommet, each		11G227
17	Metal sleeve for mounting grommet, each		CAM4415
18	Bracket - top radiator LH	MPi	PCU103100
18	Bracket - top radiator RH	MPi	PCU103110
18	Bracket - 1275cc SPi & Cooper	- '90-'96	PCU10135
20	Washer - bracket bolt	- '74on	GFK1113
20	Washer - bracket bolt	- to '74	GFK1115
21	Bolt - radiator bracket	- '74on	GFK5179
21	Bolt - radiator bracket	- to '74	11G228
	Spring Washer - bracket bolt	- to '74	GFK1125
	Bolt - radiator bracket to thermostat	SPi	SH605051

More Information

More Information
SKU	HBZ534
Hydrolastic Suspension	Hydrolastic
Manufacturer	Mini Sport
Cross Reference Product Codes	HBZ534
