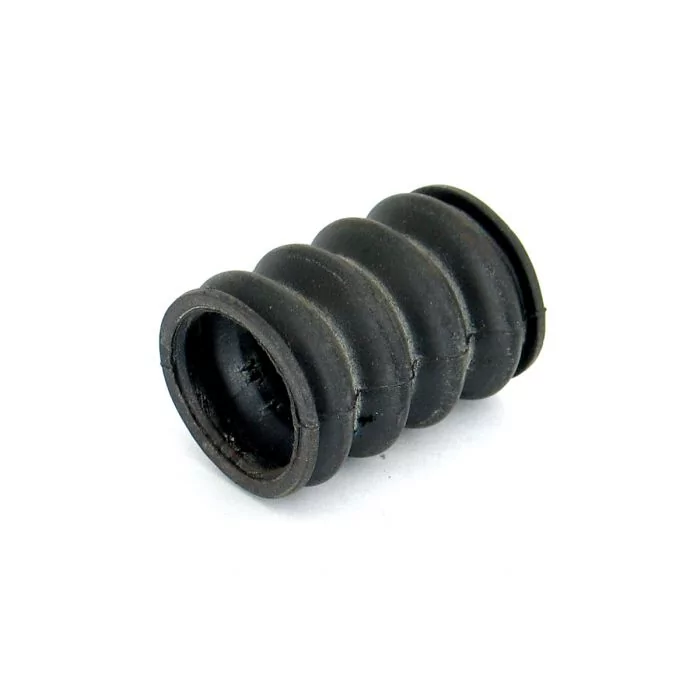

Selector Shaft Oil Seal Rubber Boot - Rod Change

Name: Selector Shaft Oil Seal Rubber Boot - Rod Change
SKU: DAM3022
Price: 3.179001 AUD
Availability: InStock

Be the first to review this product

Special Price AUD $3.18 AUD $2.89 Regular Price AUD $3.92

In stock

SKU

DAM3022

Selector shaft oil seal rubber boot - rod change

Frequently Bought Together

Selector Shaft Oil Seal Rubber Boot - Rod Change
Special Price AUD $3.18 AUD $2.89 Regular Price AUD $3.92
Clutch Oil Seal - Injection
Special Price AUD $9.89 AUD $8.99 Regular Price AUD $12.49
Handbrake Cable - Rear Mini 1976 on
Special Price AUD $16.64 AUD $15.13 Regular Price AUD $20.35
Selector Seal - Rod Type
Special Price AUD $1.94 AUD $1.76 Regular Price AUD $2.00
Throttle Cable - HS2/HS4
Special Price AUD $9.26 AUD $8.42 Regular Price AUD $11.11

Details

Selector Shaft Oil Seal Rubber Boot - Rod Change

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

10	Selector Fork - 1st and 2nd speed	TSP100390
9	Selector Fork - 3rd and 4th speed	TSP100400
11	Shaft-selector fork	22G1854
28	Pin - Roll - Fork to shaft	22G2595
12	Ball-detent	BLS110
13	Spring - detent	22G2083
14	Sleeve - detent	22G1870
15	O' Ring - sleeve	22G1417
16	Shaft - selector	22G1858
17	Boot - selector shaft seal	DAM3022
18	Spool - interlock	22G1844
19	Bush - pivot	42H1077
20	Lever - release	AHU2292
21	Lever - bell crank-upper	22G1848
22	Lever - bell crank-centre	22G1847
23	Spacer - lever	42H1081
24	Washer	PWZ306
25	Nut - nyloc pivot pin	GFK3323
26	Pin - pivot - bell crank	22G1845
27	O' Ring - pivot	31B447

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Case - Transmission	BHM5093
2	ÔOÕ Ring Seal - Gearbox To Block	2A3606
	Stud - engine block to gearbox	FHS2410
3	Bolt - Long	GHF102
4	Set Screw - Short	GFK5180
5	Washer - Spring	GFK1124
6	Gearbox Casing Speedo End Cover	DAM5219
7	Speedo End Cover Gasket	22A541B
8	Bolt - 5/16"UNC X 1 1/8"	SH505091
9	Washer - Spring	GFK1125
10	Nut - 5/16"UNF	GHF201
11	Speedo Drive Housing End Plate	2A3626
12	Gasket - Speedo Drive Housing End Plate	GUG705564GM
13	Set Screw - 1/4"Unc X 3/4"	SH504061
14	Stud - Differential Cover	22G1834
15	Stud - Differential Cover To Case Ð Short	53K1471
16	Stud - Flywheel Housing To Case Ð Long	22A152
17	Stud - Flywheel Housing To Case Ð Short	53K547
18	Stud - Front Cover - Long	53K1474
19	Bush - Steady Shaft	13H7286
20	Dowel - Flywheel Housing	22A97
21	Dowel - Front Cover	22A13
22	Lock Washer	42H500
23	Lock Washer	22A251
24	Washer - Spring	GFK1125
25	Nut - Differential Cover	GHF201
26	Gasket Ð Upper, Differential Cover	2A3505
27	Gasket Ð Lower, Differential Cover - Rod Change	22G1836
	Gasket Ð Lower, Differential Cover - Remote Change	2A3506
28	Bearing-Needle Roller-Idler	TUK100320
29	Selector Shaft Seal Kit	MSK017
30	Seal - Differential Cover (Selector Shaft)	AHU1672
31	Bush (Aluminium) Selector	DAM8706
32	'O' Ring Seal - Selector Bush	CDU1563
33	Boot - Selector Shaft Seal	DAM3022
	Bolt Differential Cover To Case Ð Short	DAM7760
34	Bolt Flywheel Housing To Case Ð Short	DAM7756
35	Bolt Flywheel Housing To Case Ð Long	DAM7759
36	Bolt Front Cover-Long	DAM7761
37	Oil Strainer	22A335
38	O Ring - Pipe To Strainer	22A341
39	Bolt	SH604031
40	Lock Tab	22A388
41	Bolt	GFK5180
42	Lock Tab	22A1365
43	Oil Pick Up Pipe	22G1150
44	Pick Up Pipe Gasket	22A542
45	Blanking Plate - Gearbox Oil Pipe	2A3637
46	Bolt	BH604131
47	Lock Tab	2K4874
48	Sump Plug	DAM7335
49	Sump Plug Copper Washer	22A134
	Magnetic sump plug with oil temp sender take-off	C-MAD004

More Information

More Information
SKU	DAM3022
Manufacturer	OE Spec
