SKU
BTA896
Steering Arm - RH - Genuine each
Special Price
AUD $121.17
AUD $110.15
Regular Price
AUD $133.98
In stock
SKU
BTA896

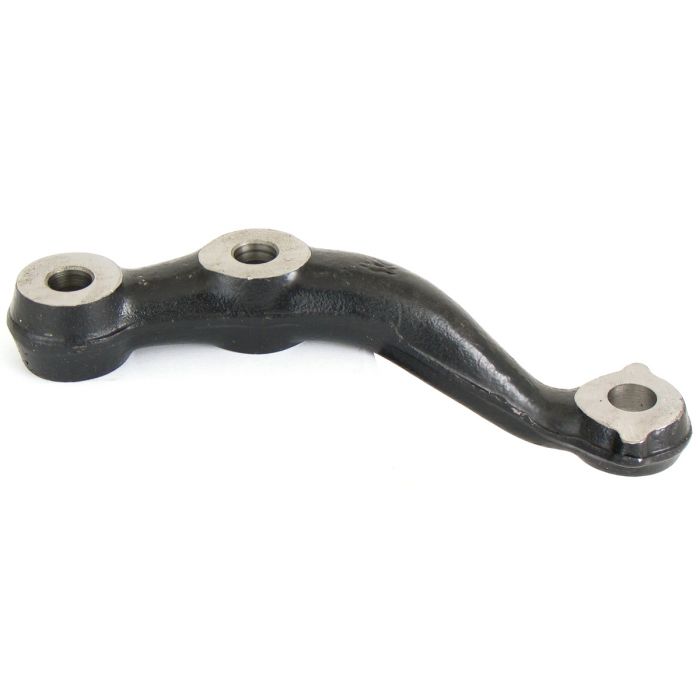

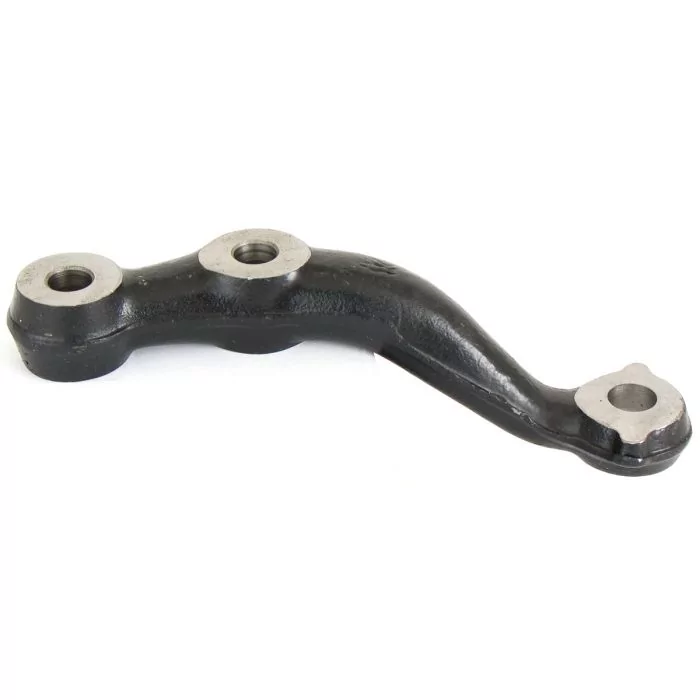

Genuine Mini right hand steering arm
Details
BTA896 - Genuine right hand Mini steering arm.
As fitted to all Minis MK2 onwards, except for the Cooper S and 1275GT. These used a thicker arm which can be used as an uprated replacement for the standard unit. See BTA894 & BTA895.
MK1 Minis used a different steering rack and arm set up. if you are changing an original MK1 rack for a modern one, you will also need to change the steering arms.
The matching left hand arm is BTA897. When you are fitting a new arm don't forget to fit new lock tabs - 2K5377 - and bolts - 2A4315.
Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!
Find all related parts with our Easy Parts Finder
|
No.
|
Description
|
Notes
|
Part No.
|
|
|
Standard rubber cone - front & rear
|
|
|||
|
1
|
Competition rubber cone - front & rear
|
|
||
|
1
|
Moulton Smootha Ride front cone
|
|
||
|
1
|
Moulton Smootha Ride rear cone
|
|
||
|
Aluminium front strut, each
|
|
|||
|
2
|
Adjusta Ride front struts, pair
|
|
||
|
Adjusta Ride full car kit
|
|
|||
|
Knuckle joint - standard, each
|
|
|||
|
3
|
Knuckle joint - Adjusta Ride, each
|
|
||
|
Knuckle joint nylon cup, each
|
|
|||
|
Genuine tie rod (inc bushes),
|
each
|
|||
|
5
|
Adjustable tie rods - thick, pair
|
|
||
|
5
|
Group 'A' Adjustable tie rods, pair suitable for road, rally or race
|
|
||
|
5
|
Group 'A' rose jointed tie rods, pair suitable for tarmac rally or race
|
|
||
|
|
Female Rose Joint 1/2" UNF, each
|
|
||
|
|
Teflon 1/2"UNF female rose joint
|
|
||
|
|
Male Rose Joint 1/2" UNF, each
|
|
||
|
|
Teflon 1/2"UNF male rose joint
|
|
||
|
Bolt - tie rod to bottom arm,
|
each
|
|||
|
Spring Washer - 5/16" UNF Spring washer,
|
each
|
|||
|
Nut - Nyloc 5/16'UNF
|
each
|
|||
|
Standard rubber bushes
|
each
|
|||
|
9
|
Uprated rubber bushes
|
set 4
|
||
|
9
|
Poly bush kit (black or red)
|
set 4
|
||
|
Washer - cup type, tie rod end
|
each
|
|||
|
Washer - flat, tie rod end
|
each
|
|||
|
Nyloc nut - 7/16"UNF tie rod
|
each
|
|||
|
Shock Absorbers
|
each or kits
|
|||
|
Rubber eyelet bush (with insert),
|
each
|
|||
|
Top standard mount, LH,
|
each
|
|||
|
14
|
Top standard mount, RH,
|
each
|
||
|
14
|
Top competition mount, RH,
|
each
|
||
|
14
|
Top competition mount, LH,
|
each
|
||
|
Set Screw - 1/4" UNF x 3/4"
|
each
|
|||
|
Spring Washer - 1/4"
|
each
|
|||
|
Front Shock Absorber Bottom Mount,
|
each
|
|||
|
17
|
Lower competition pin
|
each
|
||
|
Nut - Nyloc 3/8"UNF shocker mount
|
each
|
|||
|
Bump Stop - rubber twin bolt
|
each
|
|||
|
19
|
Bump Stop - rubber single bolt
|
each
|
||
|
19
|
Bump Stop - rubber hydrolastic type
|
each
|
||
|
19
|
Bump Stop - rubber single bolt - early MK1
|
each
|
||
|
19
|
Bump Stop - poly single bolt
|
pair
|
||
|
19
|
Bump Stop - poly twin bolt
|
pair
|
||
|
Nut - 1/4" UNF
|
|
|||
|
20
|
Nut - nyloc 1/4"UNF
|
|
||
|
Spring Washer - 1/4"
|
|
|||
|
21
|
Washer - flat 1/4Ó
|
|
||
|
Repair kit, all parts to service 1 x top arm
|
|
|||
|
Top arm shaft
|
each
|
|||
|
Sealing Ring bush - top arm shaft
|
each
|
|||
|
Thrust washer - top arm shaft
|
each
|
|||
|
Thrust collar - top arm shaft
|
each
|
|||
|
Retaining plate - top arm shaft
|
each
|
|||
|
Spring washer - top arm shaft
|
each
|
|||
|
Nut - top arm shaft
|
each
|
|||
|
Rebound buffer, each
|
|
|||
|
30
|
Poly rebound buffer, pair
|
|
||
|
Shaft - lower suspension arm
|
each
|
|||
|
Bush - rubber (2 per arm)
|
each
|
|||
|
32
|
Bush kit - polyurethane uprated (black or red)
|
kit
|
||
|
32
|
Bush set - nylon competition type
|
set
|
||
|
Nut - nyloc 3/8"UNF
|
each
|
|||
|
Top Arm RH - suit dry suspension
|
|
More Information
| SKU | BTA896 |
|---|---|
| Manufacturer | Genuine |
