Rivet SET- Upper Door Moulding - Mini Mk1-2

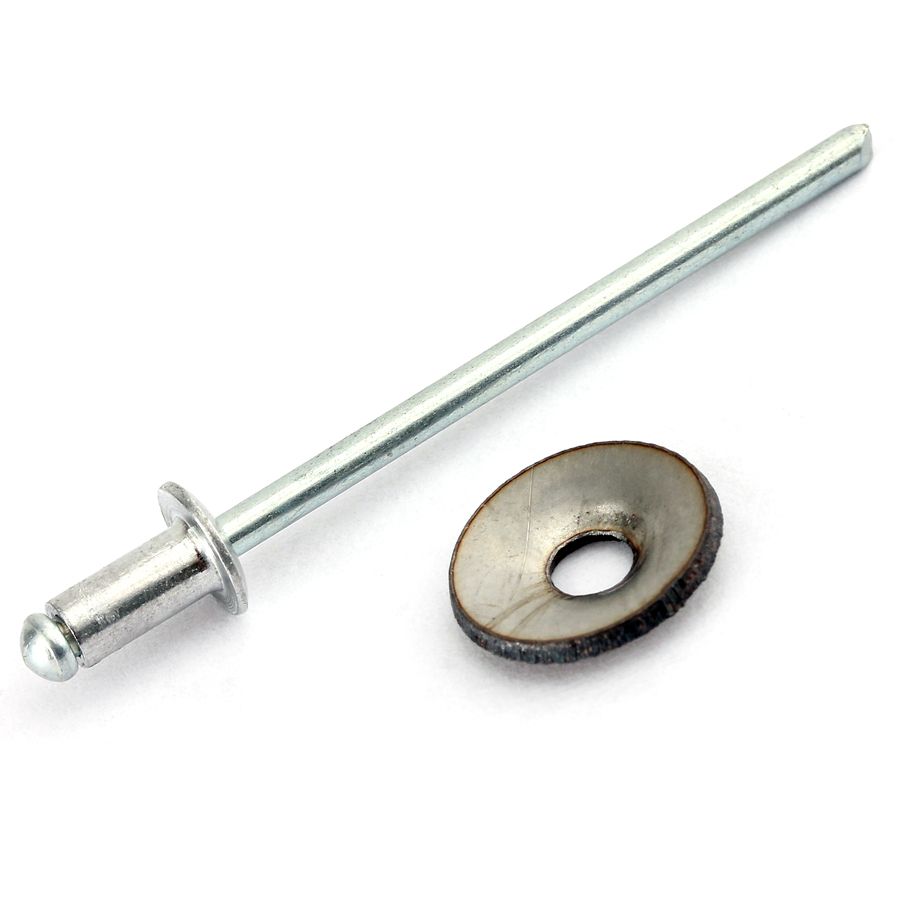

Set of 10 fixing rivets for mounting the upper door moulding (14A9774 LH, 14A9773 RH) on Mini Mk1 and Mk2 models with sliding type windows and external door hinges.  The set is for one door only and consists of 2 x end rivets slide on type and 8 x upper rivets clip on type.

Installation is simple

1. 1/8" drill required - drill evenly spaced holes on the straights, no drilling on the corners, 4 across the top, 3 on the vertical side and 3 on the angled side.
2. The 2 x "End Rivets" should be fitted on the bottom of the edges so the moulding can be slid onto these. (A in image)
3. The remaining 8 x "Upper Rivets" fitted in the remaining holes for the moulding to clip onto. (B in image)
4. Repeat on the second door.
5. Take your time and you will find fitting is easy!

Other door mouldings available for sliding type windows:

• 24A342 - Lower, left door - requires 5 x clips 13H525 to fit
• 24A341 - Lower, right door - requires 5 x clips 13H525 to fit
• 14A9774 - Upper, left door - requires rivets 13H743SET to fit
• 14A9773 - Upper, right door - requires rivets 13H743SET to fit

A reproduction part, made to the highest standards, perfect for any Mini restoration or concourse project.
